4-Twisted Pairs of Wire, CAT5e RS-485 Shielded, Stranded PVC Cable (FTP), 50 feet

We offer high quality CAT5e 100-MHz Shielded, Stranded PVC Cable (FTP) cable for use with our RS-485 enabled meters. ~section 2~

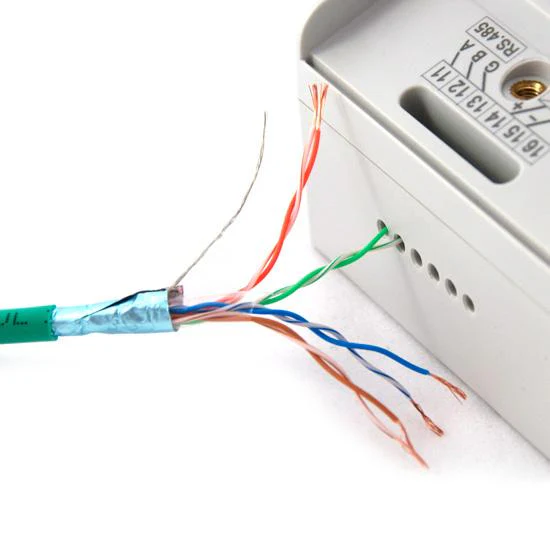

We now offer high quality CAT5e cable in 50 foot increments. This shielded cable contains four pairs of stranded twisted pair wire which works great for connecting RS-485 enabled meters and communication devices.

Product Specs:

• Attenuation (Maximum) — 33 dB/100 m (328 ft.) at 100 MHz
• Capacitance Unbalanced (Maximum) — 330 pF/100
• Characteristic Resistance — 1–100 MHz
• Conductor Gauge — 26 AWG, stranded, tinned copper
• Conductor Resistance — 14.07 ohms/100m
• Construction — Mylar tape, tinned-copper drain wire, aluminum/Mylar tape, PVC (CM) jacket
• Frequency — Up to 100 MHz
• Impedance — 100 ± 15 ohms
• Insulation Material — HDPE
• Mutual Capacitance (Maximum) — 5600 pF/100m
• NEXT (Minimum) — 35.0 dB/100 m (328 ft.) at 100 MHz
• PS-NEXT — 32.0 dB/100 m (328 ft.) at 100 MHz
• Outside Diameter — 0.2205" ± .008"
• Resistance Unbalanced (Maximum) — 5%
• Standards — ANSI/TIA-568-B.2; ISO/IED 11801 ed. 2; EN 50288-2-2; IEC 60332-1-2, UL®
• RoHS — Yes

*Wire is sold in 50ft increments. If more than one unit is purchased they will be shipped to you as one continuous length of cable.

PVC jacket color may vary.
